PRECISION CNC MACHINING

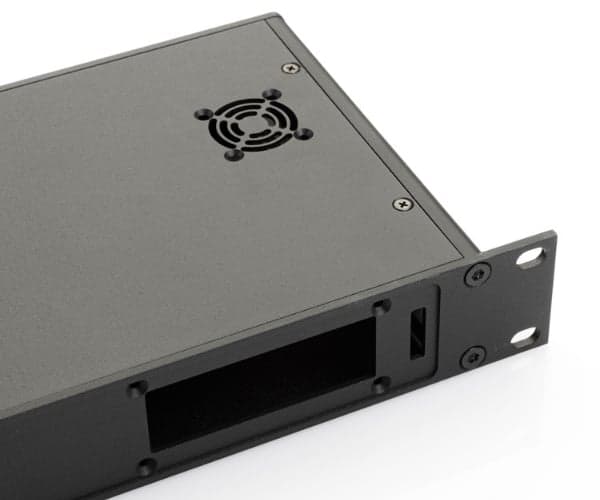

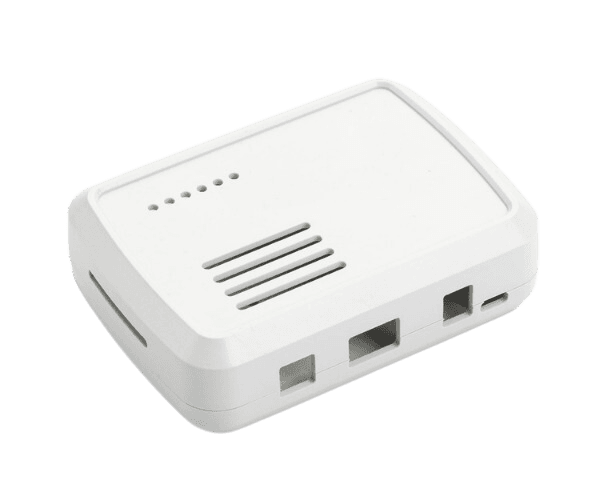

Custom CNC Machining for Electronic Enclosures
We machine your plastic, aluminum, and sheet metal enclosures with millimetric precision using our computer-controlled CNC machines.
30+ Years90+ Countries10,000+ Manufacturers
Download CNC Machining Catalog
WHY ALTINKAYA
Why Choose Solidshell Enclosures for CNC Machining?
Any Geometry
We offer the ability to cut in various geometric shapes and sizes.
No Minimum Order Quantity
We process even single-unit orders.
Flawless Workmanship
We machine all surfaces of enclosures precisely and quickly with our team specialized in enclosure machining.
Precise Cutting Tolerances
We can machine with tolerances down to ± 0.1 mm.
Over 30 Years of Experience
Our experienced team will guide you to the best results.
Technical Support
We can provide technical support to ensure your product exceeds expectations.
Waste-free Production
We cover the waste generated when machining our enclosures.
30+
Years of Experience
90+
Countries Exported To
10,000+
Manufacturers Trust Us
1,300+
Product Range
MACHINING CAPABILITIES
Cutting Types
Circular Cutting
Rectangular Cutting
Curved Cutting
Label Recess Milling
Flat / Groove Countersink
Chamfer Cutting
ORDER PROCESS
How to Order CNC Machining
1
Send Your Drawing
Send us your technical drawing or sample. We accept PDF, DXF, STEP, and many more formats.
2
Get a Quick Quote
Our expert team reviews your drawing and provides a quote as quickly as possible.
3
Receive Your Product
After your approval, production begins and your products are delivered to your doorstep.
ORDER TRACKING
CNC Machining Workmanship Code
We assign a code to each CNC cutting and visual printing operation and save it in our computer systems. When you want to repeat your order, you can use this code to speed up your processing.
Want a quote for your project?
Send us your technical drawing and we'll provide a quick quote.
Trusted by 10,000+ manufacturers in 90+ countries for over 30 years
Contact UsTECHNICAL SPECIFICATIONS
CUT GEOMETRY
Corner Radius
Because we use a rotating tool, the corners of machined shapes come out rounded in proportion to the tool size.
Sharper corners are possible using smaller tools, but this increases our processing time and cost.
| Material | Standard Radius | Minimum Radius |
|---|---|---|
| Plastic | 1,00 mm | 0,75 mm |
| Clear Panel | 1,25 mm | 1,00 mm |
| Aluminum | 1,25 mm | 1,00 mm |
| Sheet Metal | 1,25 mm | 1,00 mm |
SCREW MACHINING
Countersinking
Countersinking is performed so that screws sit flush with the surface.
| Size | Screw countersink height | Material thickness |
|---|---|---|
| M4 | 2,3 | 2,3 |
| M4,5 | 2,55 | 2,55 |
| M5 | 2,8 | 2,8 |
| M6 | 3,3 | 3,3 |
| M8 | 4,4 | 4,4 |
THREADING
Threading
Instead of drilling plain holes and using nuts when mounting components such as connectors and cable glands to enclosures, we can also thread the enclosure surface with special tools. You can find the thread sizes and pitches we offer in metric and PG standards in the table.
| Metric | |
|---|---|
| Size | Pitch |
| M2,5 | 0,45 |
| M3 | 0,50 |
| M4 | 0,70 |
| M5 | 0,80 |
| Metric | |
|---|---|
| Size | Pitch |
| M10 | 0,75 |
| M10 | 1 |
| M25 | 1,50 |
| M32 | 1,50 |
| PG Panzer-Gewinde | |
|---|---|
| Size | Pitch |
| PG7 | 1,27 |
| PG9 | 1,411 |
| PG11 | 1,411 |
| PG13,5 | 1,41 |
| PG16 | 1,411 |
| PG21 | 1,588 |
ADDITIONAL SERVICES
Additional Machining Services
Label Recess for Membrane Labels
The enclosure can be cut so that the button does not pierce the label, allowing it to flex.
Pool milling to the desired depth
Pool milling can also be performed on metal surfaces.
Press-fit Components
Press-fit nuts, screws, and standoffs are components that enable stronger and more durable assembly of all types of devices and circuit boards. Specially manufactured press-fit nuts, screws, and standoffs are pressed with high pressure into pre-drilled holes on soft metal using a special press.
For metal and aluminum surfaces
Strong and durable
Threaded mounting standoffs at desired height
Precise workmanship with parallel pressing method
High torque resistance
No extra holes or threading required
Cost-effective and clean workmanship
Screws, nuts, open and closed mounting standoffs
Press-fit Nut (Steel)
S Models
Compatible with M3, M4, M5, M6, M8 sizes
Press-fit Screw (Steel)
FH Models
Compatible with M3, M4, M5, M6, M8 sizes
FILE PREPARATION
Submitting Your Design
Instructions and File Formats for CNC Machining
You can send us your CNC machining instructions in different formats.
If you do not have a technical drawing, you can send us a sample of the relevant product. The necessary drawings will be prepared by us based on the sample and sent to you for approval.
If you send us the components to be mounted on the enclosure (circuit boards, connectors, terminal blocks, LCD screens, etc.) along with the sample enclosure during production, we can check the component fits during the first production run and adjust the machining dimensions and tolerances to match the samples.
Please ensure the file scale is 1:1.
| File Format | 2D / 3D | File Extension |
|---|---|---|
| Hand-drawn Sketch | 2-Dimensional | pdf, jpg, png, tif |
| AutoCAD Drawing | 2-Dimensional | dxf |
| PDF Drawing | 2-Dimensional | |
| Step | 3-Dimensional | stp, step |
| Parasolid | 3-Dimensional | x_t |
| Iges | 3-Dimensional | igs |
Technical Drawing for CNC Machining
When dimensioning a technical drawing, determine the center point and provide dimension values, or provide measurements from points on the enclosure that can be measured with calipers.
Tolerances DIN7168
Although our CNC machines have high precision, avoid specifying very tight tolerances since plastic is a flexible material. Below you can find the general tolerances we use. For special tolerances or parts with special mounting requirements, consult with our specialists.
| Nominal Dimensions (mm) | 0,5 - 3 | 3 - 6 | 6 - 30 | 30 - 120 | 120 - 400 |
|---|---|---|---|---|---|
| Medium | ± 0,1 | ± 0,1 | ± 0,2 | ± 0,30 | ± 0,5 |
REFERENCES
CNC Machining Examples
Some examples of CNC machining work we have performed for our customers.
FREQUENTLY ASKED QUESTIONS
CNC Machining FAQ
Is there a minimum order quantity?
No, there is no minimum order quantity. We process even single-unit orders.
What file formats do you accept?
We accept hand-drawn sketches (PDF, JPG, PNG), AutoCAD drawings (DXF), PDF drawings, STEP, Parasolid, and IGES formats. Please ensure the file scale is 1:1.
What are your tolerances?
We apply general tolerances per DIN7168 standard. We provide ± 0.1 mm for 0.5-3 mm range and ± 0.2 mm for 6-30 mm range. Contact our specialists for special tolerance requirements.
What materials can you machine?
We can perform CNC machining on plastic, aluminum extrusion, sheet metal, clear panels, and aluminum die-cast materials.
Can I reorder a previously machined part?
Yes, we assign a workmanship code to every CNC machining order. You can use this code to quickly place repeat orders.
Looking for CNC machining services for your project?
Our expert team is ready to help. Send us your technical drawing and we'll provide a quick quote.
